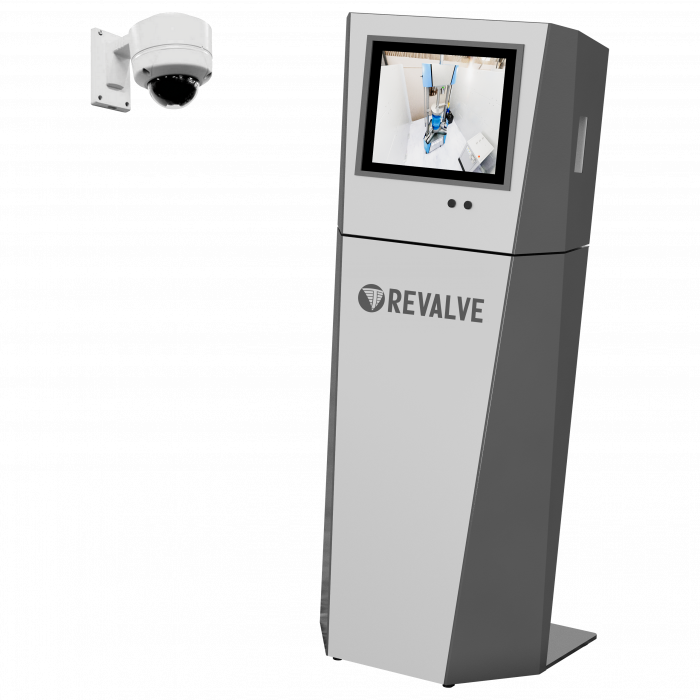

Video control station

Purpose

  • remote monitoring of testing process of different equipment within the safety fence where the presence of operators is hazardous or not required.

Complete set

  • control panel;
  • high quality turning video cameras of dome type, 2 or 4 pcs. (5 by order);
  • set of fastening devices;
  • set of connecting cables;
  • documentation.

Parameter

SVN

Video monitor:



- type;

colour, not touch sensitive

- diagonal, inches.

17

Video camera:



- type;

dome-type

- sensitivity, lux;

1

- zoom (digital/optical);

12х/18х

- horizontal turn angle, deg.;

360

- vertical turn angle, deg.

90

Supply voltage, V/Hz

230/50

Consumed power, kW, not exceeding

300

Operation conditions:



- ambient air temperature, ºС (ºF);

from +10 (+50) to +35 (+95)

- relative air humidity, (at 25ºС (77 ºF)), %;

from 45 to 80

- atmospheric pressure, bar (psi).

from 0,84 (12) to 1 (15)

Overall dimensions of control panel, (LxWxH), mm (), not exceeding

600х700х1685 (24x28x67)

Weight, kg (lbs), not exceeding

85 (188)


Advantages

  • Visual monitoring of testing process performed within safety fence from different sides.
  • All the control elements are located at industrial upright of high protection rate.Uprights are installed at foundations using anchor bolts.
  •  Monitor of industrial version has IP 54 protection against dust and moisture providing operability in conditions of increased humidity, dustiness and significant difference of temperatures.
